200-301: Cisco Certified Network Associate (CCNA) Part 4
Question #: 161
Topic #: 1
What is a benefit for external users who consume public cloud resources?
A. Implemented over a dedicated WAN
B. All hosted on physical servers
C. Accessed over the Internet
D. Located in the same data center as the users
Selected Answer: C
Question #: 162
Topic #: 1
An engineer must update the configuration on two PCs in two different subnets to communicate locally with each other. One PC is configured with IP address
192.168.25.128/25 and the other with 192.168.25.100/25. Which network mask must the engineer configure on both PCs to enable the communication?
A. 255.255.255.248
B. 255.255.255.224
C. 255.255.255.0
D. 255.255.255.252
Selected Answer: C
Question #: 163
Topic #: 1
Which key function is provided by the data plane?
A. Originating packets
B. Exchanging routing table data
C. Making routing decisions
D. Forwarding traffic to the next hop
Selected Answer: D
Question #: 164
Topic #: 1
When should an engineer implement a collapsed-core architecture?
A. Only when using VSS technology
B. For small networks with minimal need for growth
C. For large networks that are connected to multiple remote sites
D. The access and distribution layers must be on the same device
Selected Answer: B
Question #: 165
Topic #: 1
Refer to the exhibit. An engineer assigns IP addressing to the current VLAN with three PCs. The configuration must also account for the expansion of 30 additional
VLANS using the same Class C subnet for subnetting and host count. Which command set fulfills the request while reserving address space for the expected growth?
A. Switch(config)#interface vlan 10 Switch(config-if)#ip address 192.168.0.1 265 255.255.252
B. Switch(config)#interface vlan 10 Switch(config-if)#ip address 192.168.0.1 255 255.255.248
C. Switch(config)#interface vlan 10 Switch(config-if)#ip address 192.168.0.1 255 255.255.0
D. Switch(config)#interface vlan 10 Switch(config-if)#ip address 192.168.0.1 255.255.255.128
Selected Answer: B
Question #: 166
Topic #: 1
A client experiences slow throughput from a server that is directly connected to the core switch in a data center. A network engineer finds minimal latency on connections to the server, but data transfers are unreliable, and the output of the show interfaces counters errors command shows a high FCS-Err count on the interface that is connected to the server. What is the cause of the throughput issue?
A. a physical cable fault
B. a speed mismatch
C. high bandwidth usage
D. a cable that is too long
Selected Answer: A
Question #: 167
Topic #: 1
What is the difference between 1000BASE-LX/LH and 1000BASE-ZX interfaces?
A. 1000BASE-LX/LH interoperates with multimode and single-mode fiber, and 1000BASE-ZX needs a conditioning patch cable with multimode.
B. 1000BASE-ZX interoperates with dual-rate 100M/1G 10Km SFP over multimode fiber, and 1000BASE-LX/LH supports only single-rate
C. 1000BASE-ZX is supported on links up to 1000km, and 1000BASE-LX/LH operates over links up to 70 km
D. 1000BASE- LX/LH is supported on links up to 10km, and 1000Base-ZX operates over links up to 70 km
Selected Answer: D
Question #: 168
Topic #: 1
What are two reasons to implement IPv4 private addressing on a network? (Choose two.)
A. To enable internal applications to treat the private IPv4 addresses as unique
B. To facilitate renumbering when merging networks
C. To expand the routing table on the router
D. To provide protection from external denial-of-service attacks
E. To conserve global unique IPv4 addresses
Selected Answer: AE
Question #: 169
Topic #: 1
Which concern is addressed with the use of private IPv4 addressing?
A. Lack of routing protocol support for CIDR and VLSM
B. Lack of security protocols at the network perimeter
C. Lack of available TCP/UDP ports per IPv5 address
D. Lack of available publicly routable unique IPv4 address
Selected Answer: D
Question #: 170
Topic #: 1
What is the path for traffic sent from one user workstation to another workstation on a separate switch in a three-tier architecture model?
A. access ג€” core ג€” access
B. access ג€” distribution ג€” distribution ג€” access
C. access ג€” core ג€” distribution ג€” access
D. access ג€” distribution ג€” core ג€” distribution ג€” access
Selected Answer: D
Question #: 171
Topic #: 1
What is the difference between IPv6 unicast and anycast addressing?
A. An individual IPv6 unicast address is supported on a single interface on one node, but an IPv6 anycast address is assigned to a group of interfaces on multiple nodes.
B. IPv6 anycast nodes must be explicitly configured to recognize the anycast address, but IPv6 unicast nodes require no special configuration.
C. IPv6 unicast nodes must be explicitly configured to recognize the unicast address, but IPv6 anycast nodes require no special configuration.
D. Unlike an IPv6 anycast address, an IPv6 unicast address is assigned to a group of interfaces on multiple nodes.
Selected Answer: A
Question #: 172
Topic #: 1
Refer to the exhibit. Between which zones do wireless users expect to experience intermittent connectivity?
A. between zones 1 and 2
B. between zones 2 and 5
C. between zones 3 and 4
D. between zones 3 and 6
Selected Answer: C
Question #: 173
Topic #: 1
Which WAN topology provides a combination of simplicity quality, and availability?
A. partial mesh
B. full mesh
C. point-to-point
D. hub-and-spoke
Selected Answer: C
Question #: 174
Topic #: 1
DRAG DROP –

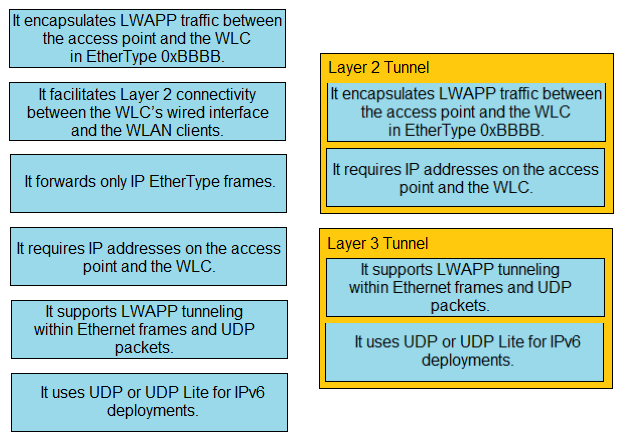

Drag and drop the statements about wireless architectures from the left onto the architectures on the right.
Select and Place:
Suggestion Answer:
Question #: 175
Topic #: 1
DRAG DROP –

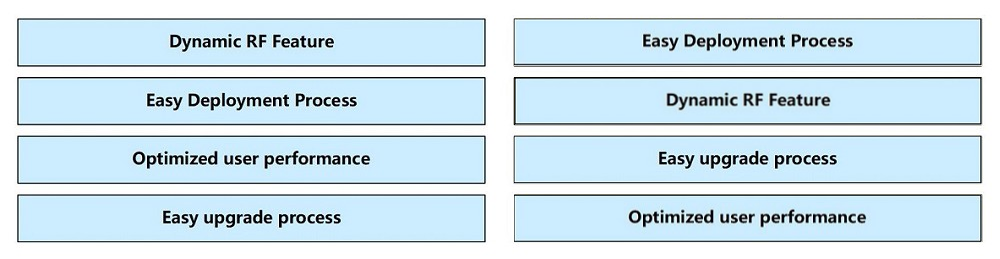

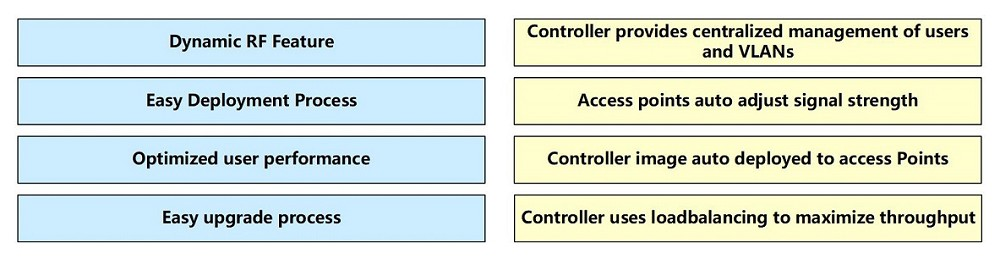

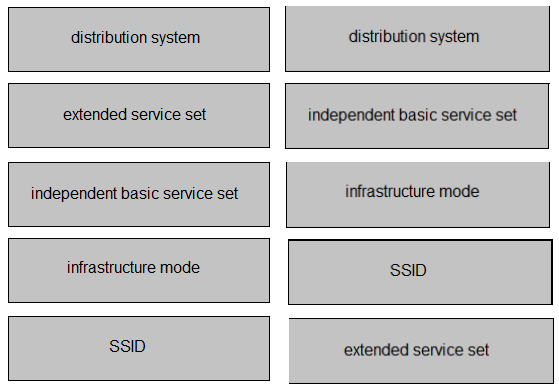

Drag and drop the Wi-Fi terms from the left onto the descriptions on the right.
Select and Place:
Suggestion Answer:
Question #: 176
Topic #: 1
How are the switches in a spine-and-leaf topology interconnected?
A. Each leaf switch is connected to one of the spine switches
B. Each leaf switch is connected to each spine switch.
C. Each leaf switch is connected to two spine switches, making a loop.
D. Each leaf switch is connected to a central leaf switch, then uplinked to a core spine switch.
Selected Answer: B
Question #: 177
Topic #: 1
What is the primary effect of the spanning-tree portfast command?
A. It immediately enables the port in the listening state.
B. It immediately puts the port into the forwarding state when the switch is reloaded.
C. It enables BPDU messages.
D. It minimizes spanning-tree convergence time.
Selected Answer: D
Question #: 178
Topic #: 1
What occurs when PortFast is enabled on an interface that is connected to another switch?
A. Root port choice and spanning-tree recalculation are accelerated when a switch link goes down.
B. After spanning-tree converges, PortFast shuts down any port that receives BPDUs.
C. VTP is allowed to propagate VLAN configuration information from switch to switch automatically.
D. Spanning-tree fails to detect a switching loop increasing the likelihood of broadcast storms.
Selected Answer: D
Question #: 179
Topic #: 1
Which QoS Profile is selected in the GUI when configuring a voice over WLAN deployment?
A. Platinum
B. Bronze
C. Gold
D. Silver
Selected Answer: A
Question #: 180
Topic #: 1
Refer to the exhibit. Which switch in this configuration will be elected as the root bridge?
SW1: 0C:E0:38:41:86:07 –
SW2: 0C:0E:15:22:05:97 –
SW3: 0C:0E:15:1A:3C:9D –
SW4: 0C:E0:18:A1:B3:19 –
A. SW1
B. SW2
C. SW3
D. SW4
Selected Answer: C
Question #: 181
Topic #: 1
DRAG DROP –

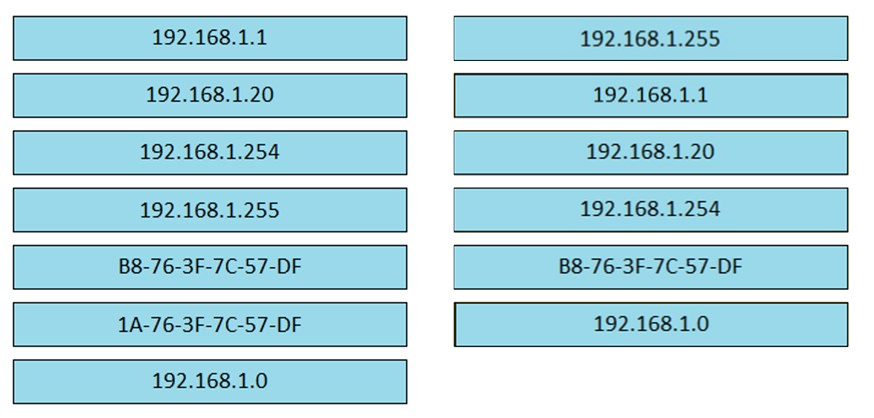

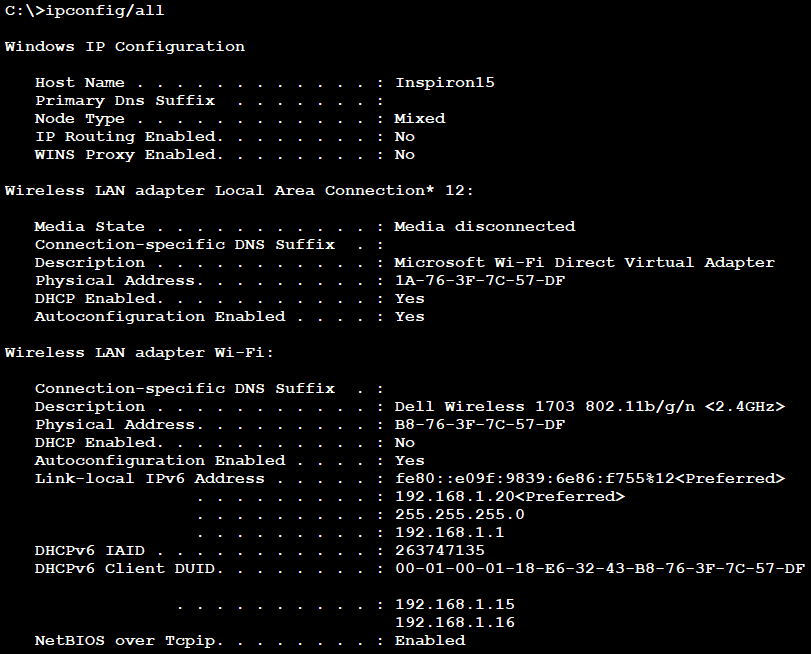

Refer to the exhibit. An engineer is required to verify that the network parameters are valid for the users’ wireless LAN connectivity on a /24 subnet. Drag and drop the values from the left onto the network parameters on the right. Not all values are used.
Select and Place:
Suggestion Answer:
Question #: 182
Topic #: 1
An engineer needs to configure LLDP to send the port description type length value (TLV). Which command sequence must be implemented?
A. switch(config-if)#lldp port-description
B. switch#lldp port-description
C. switch(config-line)#lldp port-description
D. switch(config)#lldp port-description
Selected Answer: D
Question #: 183
Topic #: 1
Refer to the exhibit. Which switch becomes the root bridge?
A. S1
B. S2
C. S3
D. S4
Selected Answer: B
Question #: 184
Topic #: 1
Which configuration ensures that the switch is always the root for VLAN 750?
A. Switch(config)#spanning-tree vlan 750 priority 38418607
B. Switch(config)#spanning-tree vlan 750 priority 0
C. Switch(config)#spanning-tree vlan 750 root primary
D. Switch(config)#spanning-tree vlan 750 priority 614440
Selected Answer: B
Question #: 185
Topic #: 1
Refer to the exhibit. After the switch configuration, the ping test fails between PC A and PC B. Based on the output for switch 1, which error must be corrected?
A. The PCs are in the incorrect VLAN.
B. All VLANs are not enabled on the trunk.
C. Access mode is configured on the switch ports.
D. There is a native VLAN mismatch.
Selected Answer: D
Question #: 186
Topic #: 1
DRAG DROP –

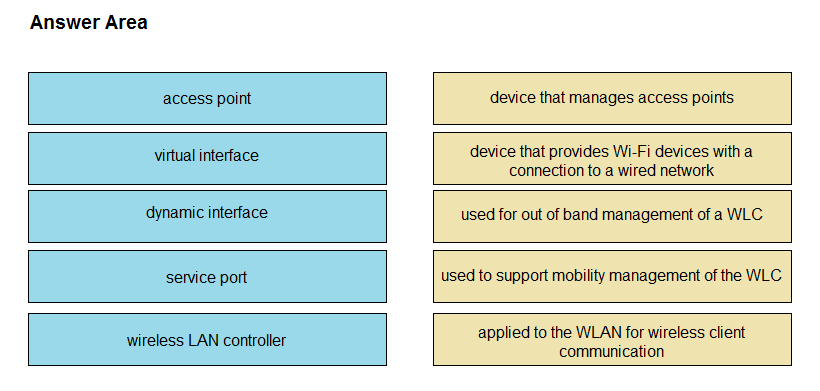

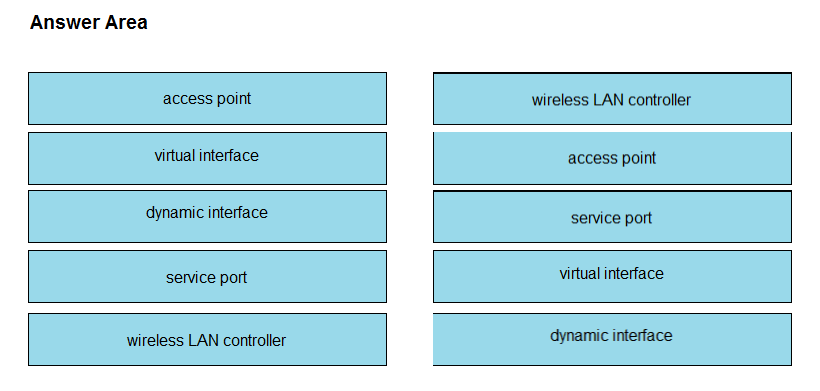

Drag and drop the WLAN components from the left onto the correct descriptions on the right.
Select and Place:
Suggestion Answer:
Question #: 187
Topic #: 1
Which unified access point mode continues to serve wireless clients after losing connectivity to the Cisco Wireless LAN Controller?
A. local
B. mesh
C. flexconnect
D. sniffer
Selected Answer: C
Question #: 188
Topic #: 1
Refer to the exhibit. Which command provides this output?
A. show ip route
B. show cdp neighbor
C. show ip interface
D. show interface
Selected Answer: B
Question #: 189
Topic #: 1
Which mode must be used to configure EtherChannel between two switches without using a negotiation protocol?
A. active
B. on
C. auto
D. desirable
Selected Answer: B
Question #: 190
Topic #: 1
Which mode allows access points to be managed by Cisco Wireless LAN Controllers?
A. bridge
B. lightweight
C. mobility express
D. autonomous
Selected Answer: B
Question #: 191
Topic #: 1
Which two values or settings must be entered when configuring a new WLAN in the Cisco Wireless LAN Controller GUI? (Choose two.)
A. QoS settings
B. IP address of one or more access points
C. SSID
D. profile name
E. management interface settings
Selected Answer: CD
Question #: 192
Topic #: 1
Which command is used to specify the delay time in seconds for LLDP to initialize on any interface?
A. lldp timer
B. lldp tlv-select
C. lldp reinit
D. lldp holdtime
Selected Answer: C
Question #: 193
Topic #: 1
Refer to the exhibit. How does SW2 interact with other switches in this VTP domain?
A. It transmits and processes VTP updates from any VTP clients on the network on its trunk ports.
B. It processes VTP updates from any VTP clients on the network on its access ports.
C. It receives updates from all VTP servers and forwards all locally configured VLANs out all trunk ports.
D. It forwards only the VTP advertisements that it receives on its trunk ports.
Selected Answer: D
Question #: 194
Topic #: 1
Refer to the exhibit. Based on the LACP neighbor status, in which mode is the SW1 port channel configured?
A. mode on
B. active
C. passive
D. auto
Selected Answer: B
Question #: 195
Topic #: 1
Two switches are connected and using Cisco Dynamic Trunking Protocol. SW1 is set to Dynamic Auto and SW2 is set to Dynamic Desirable. What is the result of this configuration?
A. The link becomes an access port.
B. The link is in an error disabled state.
C. The link is in a down state.
D. The link becomes a trunk port.
Selected Answer: D
Question #: 196
Topic #: 1
A Cisco IP phone receives untagged data traffic from an attached PC. Which action is taken by the phone?
A. It drops the traffic.
B. It allows the traffic to pass through unchanged.
C. It tags the traffic with the native VLAN.
D. It tags the traffic with the default VLAN.
Selected Answer: B
Question #: 197
Topic #: 1
Which design element is a best practice when deploying an 802.11b wireless infrastructure?
A. allocating nonoverlapping channels to access points that are in close physical proximity to one another
B. disabling TCP so that access points can negotiate signal levels with their attached wireless devices
C. configuring access points to provide clients with a maximum of 5 Mbps
D. setting the maximum data rate to 54 Mbps on the Cisco Wireless LAN Controller
Selected Answer: A
Question #: 198
Topic #: 1
Refer to the exhibit. The network administrator wants VLAN 67 traffic to be untagged between Switch 1 and Switch 2, while all other VLANs are to remain tagged.
Which command accomplishes this task?
A. switchport access vlan 67
B. switchport trunk allowed vlan 67
C. switchport private-vlan association host 67
D. switchport trunk native vlan 67
Selected Answer: D
Question #: 199
Topic #: 1
Which two command sequences must be configured on a switch to establish a Layer 3 EtherChannel with an open-standard protocol? (Choose two.)
A. interface GigabitEthernet0/0/1 channel-group 10 mode auto
B. interface GigabitEthernet0/0/1 channel-group 10 mode on
C. interface port-channel 10 no switchport ip address 172.16.0.1 255.255.255.0
D. interface GigabitEthernet0/0/1 channel-group 10 mode active
E. interface port-channel 10 switchport switchport mode trunk
Selected Answer: CE
Question #: 200
Topic #: 1
Refer to the exhibit. Which two commands when used together create port channel 10? (Choose two.)
A. int range g0/0-1 channel-group 10 mode active
B. int range g0/0-1 channel-group 10 mode desirable
C. int range g0/0-1 channel-group 10 mode passive
D. int range g0/0-1 channel-group 10 mode auto
E. int range g0/0-1 channel-group 10 mode on
Selected Answer: AC
Question #: 201
Topic #: 1
Refer to the exhibit. An administrator is tasked with configuring a voice VLAN. What is the expected outcome when a Cisco phone is connected to the
GigabitEthernet 3/1/4 port on a switch?
A. The phone and a workstation that is connected to the phone do not have VLAN connectivity.
B. The phone sends and receives data in VLAN 50, but a workstation connected to the phone sends and receives data in VLAN 1.
C. The phone sends and receives data in VLAN 50, but a workstation connected to the phone has no VLAN connectivity.
D. The phone and a workstation that is connected to the phone send and receive data in VLAN 50.
Selected Answer: B
Question #: 202
Topic #: 1
Refer to the exhibit. Which action is expected from SW1 when the untagged frame is received on the GigabitEthernet0/1 interface?
A. The frame is processed in VLAN 1
B. The frame is processed in VLAN 11
C. The frame is processed in VLAN 5
D. The frame is dropped
Selected Answer: C
Question #: 203
Topic #: 1
Which command is used to enable LLDP globally on a Cisco IOS ISR?
A. lldp run
B. lldp enable
C. lldp transmit
D. cdp run
E. cdp enable
Selected Answer: A
Question #: 204
Topic #: 1
Which command should you enter to configure an LLDP delay time of 5 seconds?
A. lldp timer 5000
B. lldp holdtime 5
C. lldp reinit 5000
D. lldp reinit 5
Selected Answer: B
Question #: 205
Topic #: 1
In a CDP environment, what happens when the CDP interface on an adjacent device is configured without an IP address?
A. CDP becomes inoperable on that neighbor
B. CDP uses the IP address of another interface for that neighbor
C. CDP operates normally, but it cannot provide IP address information for that neighbor
D. CDP operates normally, but it cannot provide any information for that neighbor
Selected Answer: B
Question #: 206
Topic #: 1
DRAG DROP –
Drag and drop the benefits of a Cisco Wireless Lan Controller from the left onto the correct examples on the right.
Select and Place:
Suggestion Answer:
Question #: 207
Topic #: 1
When configuring an EtherChannel bundle, which mode enables LACP only if a LACP device is detected?
A. Passive
B. Desirable
C. On
D. Auto
E. Active
Selected Answer: A
Question #: 208
Topic #: 1
Refer to the exhibit. Which VLAN ID is associated with the default VLAN in the given environment?
A. VLAN 1
B. VLAN 5
C. VLAN 10
D. VLAN 20
Selected Answer: A
Question #: 209
Topic #: 1
Which two VLAN IDs indicate a default VLAN? (Choose two.)
A. 0
B. 1
C. 1005
D. 1006
E. 4096
Selected Answer: BC
Question #: 210
Topic #: 1
Which two pieces of information about a Cisco device can Cisco Discovery Protocol communicate? (Choose two.)
A. the native VLAN
B. the trunking protocol
C. the VTP domain
D. the spanning-tree priority
E. the spanning-tree protocol
Selected Answer: AC
Question #: 211
Topic #: 1
After you deploy a new WLAN controller on your network, which two additional tasks should you consider? (Choose two.)
A. deploy load balancers
B. configure additional vlans
C. configure multiple VRRP groups
D. deploy POE switches
E. configure additional security policies
Selected Answer: AE
Question #: 212
Topic #: 1
Refer to the exhibit. How will switch SW2 handle traffic from VLAN 10 on SW1?
A. It sends the traffic to VLAN 10.
B. It sends the traffic to VLAN 100.
C. It drops the traffic.
D. It sends the traffic to VLAN 1.
Selected Answer: B
Question #: 213
Topic #: 1
Which two commands can you use to configure an actively negotiate EtherChannel? (Choose two.)
A. channel-group 10 mode on
B. channel-group 10 mode auto
C. channel-group 10 mode passive
D. channel-group 10 mode desirable
E. channel-group 10 mode active
Selected Answer: DE
Question #: 214
Topic #: 1
How does STP prevent forwarding loops at OSI Layer 2?
A. TTL
B. MAC address forwarding
C. Collision avoidance
D. Port blocking
Selected Answer: D
Question #: 215
Topic #: 1
Which two statements about VTP are true? (Choose two.)
A. All switches must be configured with the same VTP domain name
B. All switches must be configured to perform trunk negotiation
C. All switches must be configured with a unique VTP domain name
D. The VTP server must have the highest revision number in the domain
E. All switches must use the same VTP version
Selected Answer: AE
Question #: 216
Topic #: 1
Which type does a port become when it receives the best BPDU on a bridge?
A. The designated port
B. The backup port
C. The alternate port
D. The root port
Selected Answer: D
Question #: 217
Topic #: 1
Which value can you modify to configure a specific interface as the preferred forwarding interface?
A. The interface number
B. The port priority
C. The VLAN priority
D. The hello time
Selected Answer: B
Question #: 218
Topic #: 1
Which statement about Cisco Discovery Protocol is true?
A. It is a Cisco-proprietary protocol.
B. It runs on the network layer.
C. It can discover information from routers, firewalls, and switches.
D. It runs on the physical layer and the data link layer.
Selected Answer: A
Question #: 219
Topic #: 1
What are two reasons a network administrator would use CDP? (Choose two.)
A. to verify the type of cable interconnecting two devices
B. to determine the status of network services on a remote device
C. to obtain VLAN information from directly connected switches
D. to verify Layer 2 connectivity between two devices when Layer 3 fails
E. to obtain the IP address of a connected device in order to telnet to the device
F. to determine the status of the routing protocols between directly connected routers
Selected Answer: DE
Question #: 220
Topic #: 1
What are two benefits of using VTP in a switching environment? (Choose two.)
A. It allows switches to read frame tags.
B. It allows ports to be assigned to VLANs automatically.
C. It maintains VLAN consistency across a switched network.
D. It allows frames from multiple VLANs to use a single interface.
E. It allows VLAN information to be automatically propagated throughout the switching environment.
Selected Answer: CE
Question #: 221
Topic #: 1
Which three statements are typical characteristics of VLAN arrangements? (Choose three.)
A. A new switch has no VLANs configured.
B. Connectivity between VLANs requires a Layer 3 device.
C. VLANs typically decrease the number of collision domains.
D. Each VLAN uses a separate address space.
E. A switch maintains a separate bridging table for each VLAN.
F. VLANs cannot span multiple switches.
Selected Answer: ABE
Question #: 222
Topic #: 1
On a corporate network, hosts on the same VLAN can communicate with each other, but they are unable to communicate with hosts on different VLANs. What is needed to allow communication between the VLANs?
A. a router with subinterfaces configured on the physical interface that is connected to the switch
B. a router with an IP address on the physical interface connected to the switch
C. a switch with an access link that is configured between the switches
D. a switch with a trunk link that is configured between the switches
Selected Answer: A
Question #: 223
Topic #: 1
Which statement about LLDP is true?
A. It is a Cisco proprietary protocol.
B. It is configured in global configuration mode.
C. The LLDP update frequency is a fixed value.
D. It runs over the transport layer.
Selected Answer: B
Question #: 224
Topic #: 1
What is a function of Wireless LAN Controller?
A. register with a single access point that controls traffic between wired and wireless endpoints
B. use SSIDs to distinguish between wireless clients
C. send LWAPP packets to access points
D. monitor activity on wireless and wired LANs
Selected Answer: C
Question #: 225
Topic #: 1
Which technology is used to improve web traffic performance by proxy caching?
A. WSA
B. Firepower
C. ASA
D. FireSIGHT
Selected Answer: A
Question #: 226
Topic #: 1
What criteria is used first during the root port selection process?
A. local port ID
B. lowest path cost to the toot bridge
C. lowest neighbor’s bridge ID
D. lowest neighbor’s port ID
Selected Answer: B
Question #: 227
Topic #: 1
Which statement about VLAN configuration is true?
A. The switch must be in VTP server or transparent mode before you can configure a VLAN
B. The switch must be in config-vlan mode before you configure an extended VLAN
C. Dynamic inter-VLAN routing is supported on VLAN2 through VLAN 4064
D. A switch in VTP transparent mode save the VLAN databases to the running configuration only
Selected Answer: A
Question #: 228
Topic #: 1
Refer to the exhibit. What two conclusions should be made about this configuration? (Choose two.)
A. The root port is FastEthernet 2/1
B. The designated port is FastEthernet 2/1
C. The spanning-tree mode is PVST+
D. This is a root bridge
E. The spanning-tree mode is Rapid PVST+
Selected Answer: AE
Question #: 229
Topic #: 1
A network engineer must create a diagram of a multivendor network. Which command must be configured on the Cisco devices so that the topology of the network is allowed to be mapped?
A. Device(config)#lldp run
B. Device(config)#cdp run
C. Device(config-if)#cdp enable
D. Device(config)#flow-sampler-map topology
Selected Answer: A
Question #: 230
Topic #: 1
How do AAA operations compare regarding user identification, user services, and access control?
A. Authorization provides access control, and authentication tracks user services
B. Authentication identifies users, and accounting tracks user services
C. Accounting tracks user services, and authentication provides access control
D. Authorization identifies users, and authentication provides access control
Selected Answer: B
Question #: 231
Topic #: 1
What is the difference between RADIUS and TACACS+?
A. RADIUS logs all commands that are entered by the administrator, but TACACS+ logs only start, stop, and interim commands.
B. TACACS+ separates authentication and authorization, and RADIUS merges them.
C. TACACS+ encrypts only password information, and RADIUS encrypts the entire payload.
D. RADIUS is most appropriate for dial authentication, but TACACS+ can be used for multiple types of authentication.
Selected Answer: B
Question #: 232
Topic #: 1
What is a difference between local AP mode and FlexConnect AP mode?
A. Local AP mode creates two CAPWAP tunnels per AP to the WLC
B. Local AP mode causes the AP to behave as if it were an autonomous AP
C. FlexConnect AP mode fails to function if the AP loses connectivity with the WLC
D. FlexConnect AP mode bridges the traffic from the AP to the WLC when local switching is configured
Selected Answer: D
Question #: 233
Topic #: 1
The SW1 interface g0/1 is in the down/down state. What are two reasons for the interface condition? (Choose two.)
A. There is a protocol mismatch
B. There is a duplex mismatch
C. The interface is shut down
D. The interface is error-disabled
E. There is a speed mismatch
Selected Answer: DE
Question #: 234
Topic #: 1
The SW1 interface g0/1 is in the down/down state. What are two reasons for the interface condition? (Choose two.)
A. There is a protocol mismatch
B. There is a duplex mismatch
C. The interface is shut down
D. The interface is error-disabled
E. There is a speed mismatch
Selected Answer: DE
Question #: 235
Topic #: 1
How will Link Aggregation be implemented on a Cisco Wireless LAN Controller?
A. The EtherChannel must be configured in ג€mode activeג€.
B. When enabled, the WLC bandwidth drops to 500 Mbps.
C. To pass client traffic, two or more ports must be configured.
D. One functional physical port is needed to pass client traffic.
Selected Answer: D
Question #: 236
Topic #: 1
Which two conditions must be met before SSH operates normally on a Cisco IOS switch? (Choose two.)
A. IP routing must be enabled on the switch.
B. A console password must be configured on the switch.
C. Telnet must be disabled on the switch.
D. The switch must be running a k9 (crypto) IOS image.
E. The ip domain-name command must be configured on the switch.
Selected Answer: DE
Question #: 237
Topic #: 1
Refer to the exhibit. Which password must an engineer use to enter the enable mode?
A. adminadmin123
B. cisco123
C. default
D. testing1234
Selected Answer: D
Question #: 238
Topic #: 1
Which state does the switch port move to when PortFast is enabled?
A. blocking
B. listening
C. learning
D. forwarding
Selected Answer: D
Question #: 239
Topic #: 1
Which protocol prompts the Wireless LAN Controller to generate its own local web administration SSL certificate for GUI access?
A. RADIUS
B. HTTPS
C. TACACS+
D. HTTP
Selected Answer: B
Question #: 240
Topic #: 1
An engineer must configure interswitch VLAN communication between a Cisco switch and a third-party switch. Which action should be taken?
A. configure DSCP
B. configure IEEE 802.1q
C. configure ISL
D. configure IEEE 802.1p
Selected Answer: B
